    Water Mist Gun

    Water Mist Gun With Additives

    Water Mist Gun with additives mixes low pressure air and water (foam can be added in small quantity), atomizes and accelerates the mist, which is aimed at the seat of fire, extinguishing it in seconds. It is highly effective on majority of fires, and specifically suited for Class B (oil) fires.

    Salient Features:

    No recoil. Easy Operations. Minimum training. Lightweight. Portable. Low operating pressure (< 15 Bar for both air and water for all models)

    Water Mist Gun With Additives

    Water Mist Gun with additives mixes low pressure air and water (foam can be added in small quantity), atomizes and accelerates the mist, which is aimed at the seat of fire, extinguishing it in seconds. It is highly effective on majority of fires, and specifically suited for Class B (oil) fires.

    Salient Features:

    No recoil. Easy Operations. Minimum training. Lightweight. Portable. Low operating pressure (< 15 Bar for both air and water for all models)

    Advantages:

    • Fine water mist cuts flames quickly, rapidly cools the area, and minimizes re-ignition risk.
    • Combats majority of fire classes with high efficiency, specifically designed to tackle Class B oil and liquid fires.
    • Extended throw range enables safe application from a comfortable standoff distance.
    • Delivers high fire ratings compared to conventional fire extinguishers.
    • Built-in regulator ensures consistent pressure and performance from start to finish.
    • Constructed from high-quality durable materials with a user-friendly, zero-recoil design.

    Water Mist Gun Type Fire Extinguisher is presently available in 45 Ltrs and 20 Ltrs capacity with IS 16018:2012

    Operating and Performance parameters PG 25:

    • Discharge – 0.5 to 0.7 kg/sec
    • Vertical Throw – 10 meters
    • Horizontal Throw – 16 meters
    • Fire Rating: 13A and Type IB as per EN Standard

    Operating and Performance parameters PG 50:

    • Discharge – 0.5 to 0.7 kg/sec
    • Vertical Throw – 12 meters
    • Horizontal Throw – 20 meters
    • Fire Rating: 13A and Type IIB as per EN Standard
    Model Extinguisher Capacity (kg) Duration* (sec)
    PG 25 25 48
    PG 50 50 90
    * For continuous operation
    Model Extinguisher Capacity (kg) Duration* (sec)
    PG 25 25 48
    * For continuous operation

    The Water Mist Gun (WMFG) is available in following models:

    • Trolley Type

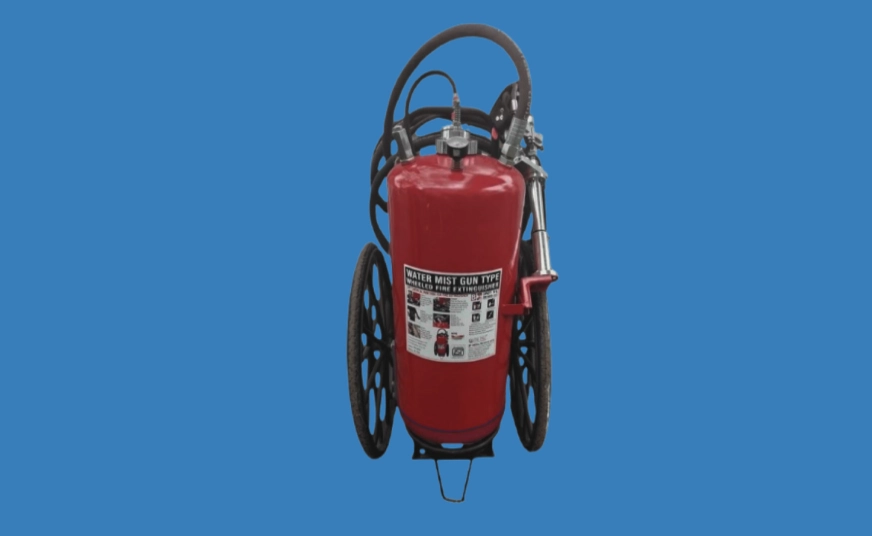

      • WMFG 45

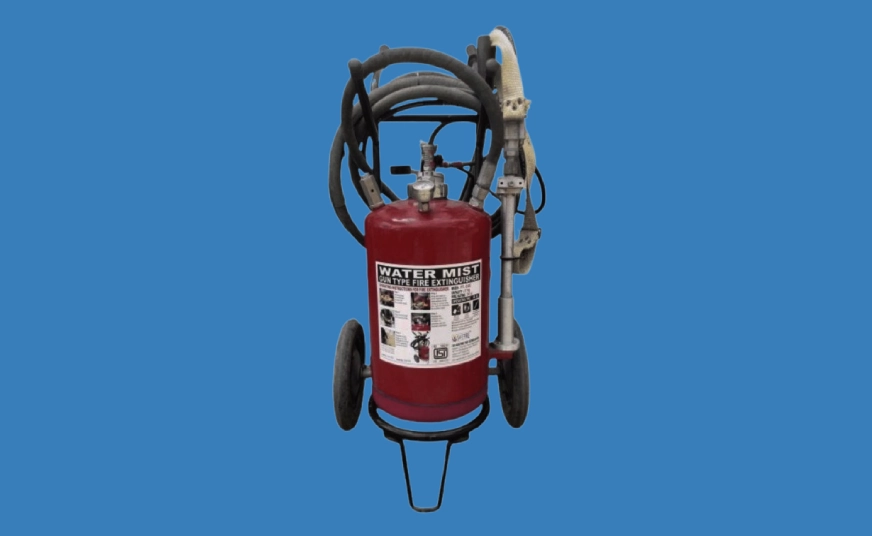

      • WMFG 20

    Standard Components :

    • Applicator Gun
    • Regulator
    • Twin Hoses
    • Water Foam Container
    • Air Cylinder
    • AFFF 6% (Optional)

    Transport Module:

    • Suitable Trolley with frame

    Performance parameters common for all models:

    • Discharge – 0.5 lt/sec.
    • Throw in
      • Jet Mode – 14 mtrs. (minimum)

    Tested at NABL accredited and ISI approved laboratory

    Model Container Capacity (lt) Wheel Dia (mm) Trolley Shockups Duration* (sec) AFFF** (lt)
    WMFG 10 10 -- N 20 0.6
    WMFG 20 20 300 N 40 1.2
    WMFG 35 S 35 300 N 70 2.1
    WMFG 35 B 35 700 Y 70 2.1
    WMFG 50 50 700 Y 100 3.0
    * For continuous operation    ** To be added
